Product introduction:Bag filter

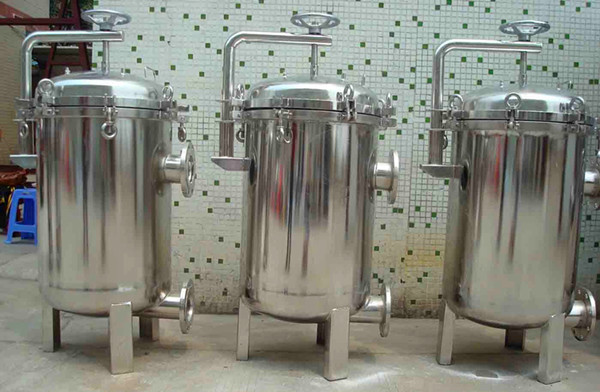

Bag filter
Bag filter is a multipurpose pressure-type filter. Liquid flows into filter bag, which installs in enhanced mesh. The impurities
in the liquid are blocked by the bag. The equipment is made of SUS304 Ss, mono-bag type or multi-bag type available. Filter
material is nylon, polypropylene, polyester, nomex, PTFE, etc.
Feature:
1.Small volume, large treating capacity.
2.Change filter bag easily, no-clean the filter.
3.Little side leakage.
4.High pressure bearings, small pressure loss, low cost, energy saving.
5.Precision increasing continuously, now up to 0.5um.
6.Broader application: drinking water treatment, industry water treatment.
|
Model |

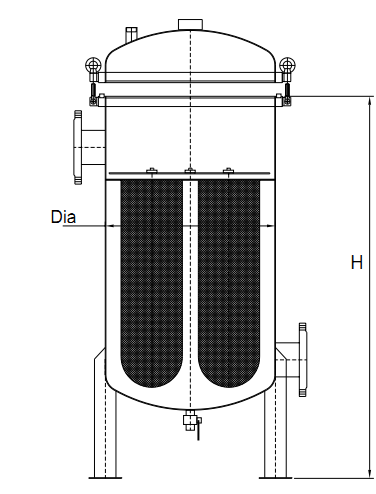

Diameter * Height* Thickness |
Water Flow |
Bag Qty |
|
SC-BF1X1 |
230*410*1.5 |
10-15 |
1 |
|
SC-BF2X1 |
230*810*1.5 |
20-30 |
1 |
|
SC-BF1X3 |
450*410*2 |
30-45 |
3 |
|
SC-BF2X3 |
450*810*2 |
60-90 |
3 |
|
SC-BF2X4 |
500*810*2 |
80-120 |
4 |
|
SC-BF2X6 |
600*810*3 |
120-180 |
6 |
|
SC-BF2X10 |
800*810*4 |
160-240 |
10 |
|
SC-BF2X20 |
1200*810*5 |
400-600 |
20 |
